How I Make My Deciduous Trees

Hello all
I just wanted to show a few pics on how I make trees. Hopefully someone somewhere will find it helpful.

This one is meant to be an oak [not that I'm fussy about that] I made it quite a while back. It's still alive

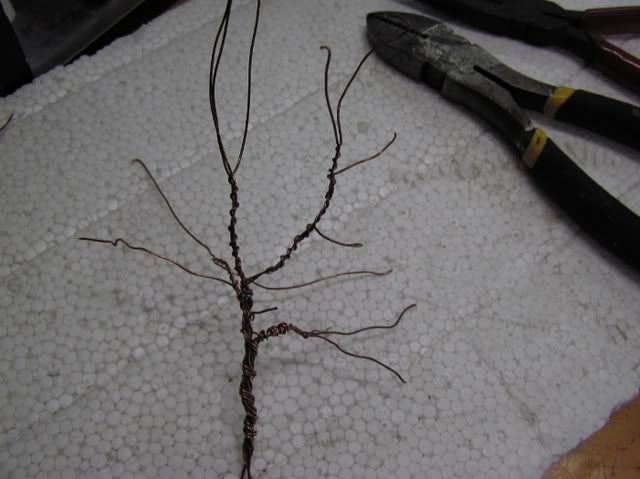

I started with a twisted wire frame

Made a second frame very similar to the first and wound them tightly together to make a twin-trunker. They were then covered with DAS modelling clay [from hobby and craft shops] which I always coat with PVA glue as it dries. That stops it cracking:

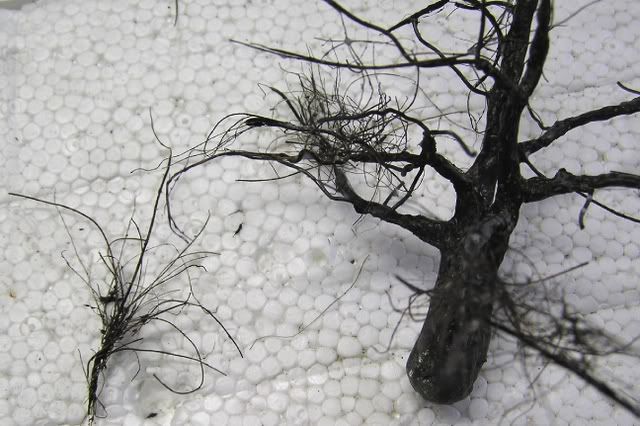

When all was dry it got a thin coat of greyish brown acrylic paint and I began to glue on the finer branches - coconut fibre from hanging basket liner which I pre-painted:

I like to twist the fibres into clumps and glue them on. Any loops or unruly branches can be snipped out once the glue has set.

Foliage for this was Heki foliage mat, glued on in small pieces. The Heki mat loses a lot of its "leaves" when it's cut or torn. I save them and glue them back on later by dabbing on some PVA then dipping the tree into the loose stuff.


On the layout:


In the next pic there's Woodland Scenics used on the trees either side of this one that has the Heki. I much prefer the Heki, although you could get a similar result by gluing some loose scatter onto the WS foliage.

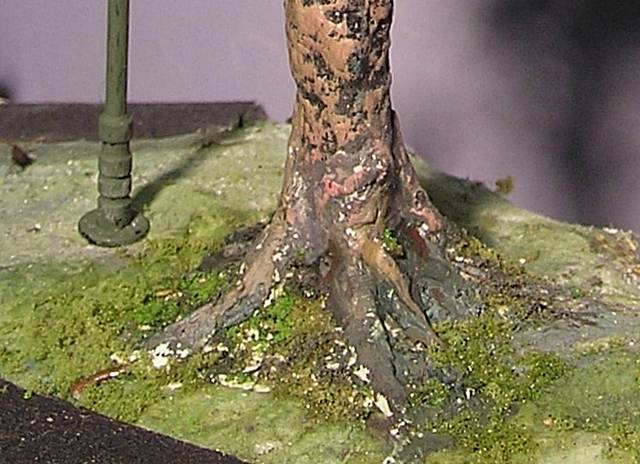

Here's another that I made. This one is the main tree in the village so I gave it a root system with clay and wire after it was planted:

In this pic the trunk looks a bit thin down low, but clay would fix it.

The tree was extended after planting


Another view:

This tree is based on a garden twig with other twigs glued into carved recesses to make the major branches. It's roughly 8" high.

I really love making trees. These are on my 00 scale [4mm] British layout. Almost makes me wish my New England layout was not set in winter.

Mike
__________________
Modelling Boston & Maine, Delaware & Hudson, Maine Central and Guilford in H0
My layout:
http://www.thewhistlepost.com/forums...d-mark-ii.html

Last edited by MikeC; 06-18-2009 at 07:46 AM.
Reply With Quote
  #2 (permalink)
Old 06-18-2009, 10:30 AM
GrampysTrains's Avatar
Engineer

Join Date: Nov 2008
Location: Columbia, Pa.
Posts: 801
Mike: Thanks for sharing your technique for making some outstanding trees. I will definitely try making some like those. DJ
__________________
DJ The Pennsylvania Linehttp://s297.photobucket.com/albums/mm237/GrampysTrains/
Reply With Quote
  #3 (permalink)
Old 06-18-2009, 07:45 PM
Steve's Avatar
Engineer

Join Date: Jul 2006
Location: USA
Posts: 1,708
Excellent work Mike!!! I appreciate you sharing your technique
How long did it take you to do the main village tree?
__________________
Modeling the Northern Pacific Railway......My Way!!!!!!
Reply With Quote
  #4 (permalink)
Old 06-18-2009, 08:55 PM
MikeC's Avatar
Engineer

Join Date: Dec 2008
Location: Brisbane, Australia
Posts: 2,568
Thanks fellas!

Nazgul that's an interesting question, because I started on that tree about ten years ago! Consequently it's famous for being the oldest tree in the village
I plan to make a small sign/plaque to stand beside it.

It's hard to say how long it took, but it would've been something like two and a half hours working time. Finding suitable twigs and whittling them and the trunk into shape was quite a job. The timbers are held together with five minute Araldite.
I really must do another for the New England side. As you would know, you never really count the time when doing things like this, and it's done in small sessions, then nothing until glue and paint dry.

Mike
__________________
Modelling Boston & Maine, Delaware & Hudson, Maine Central and Guilford in H0
My layout:
http://www.thewhistlepost.com/forums...d-mark-ii.html
Reply With Quote
  #5 (permalink)
Old 06-18-2009, 10:38 PM
crazytrain's Avatar
Engineer

Join Date: Jan 2009
Location: Pennsylvania
Posts: 667
Hey Mike, those are some great looking trees. I really like the root system showing on the tree in town! I did a post in the tips,tricks and techniques section titled TREES about making trees out of wire. check it out if you get a chance I used plaster of paris to cover the wire and have not had any cracks unless you bend them. I brushed the plaster on in thin coats and it gave them a little texture. I was playing around one night and found some old wire that you would use for wiring in your house. I stripped all the insulation off and used some other wire that I had laying around. they turned out pretty well and they were cheap to make.
__________________
Ryan
Reply With Quote
PLEASE REGISTER
If this is your first visit to The Whistle Post - Model Railroad Forum please take the time to register. Registration is required for you to post on the forums. Registration will also give you the ability to track messages of interest, send private messages to other users, and view the full contents of TheWhistlePost.com including the Photo Gallery, Video/Audio/Text Chat, Classified Ads, Photo Contests, Social Groups, and more! Registration is free and takes just a few seconds to complete. If you have any problems with the registration process or your account login, please read FAQ. Thanks for joining us! We look forward to chatting with you and seeing your layout!

Click here to join our community.

If you are already a registered member on the forums, please login above to gain full access to the site.
  #6 (permalink)
Old 06-18-2009, 11:11 PM
Sawdust's Avatar
Moderator

Join Date: Mar 2009
Location: Ohio
Posts: 3,284
Very nice job on the tree Mike. The way you did the roots at the base of the trunk looks very real. That tree does need a plaque of it's own.
__________________
Check Out My Latest Product
Self Stick Corrugated Metal Roofing

http://www.thewhistlepost.com/forums...l-roofing.html

Jim
Reply With Quote
  #7 (permalink)
Old 06-19-2009, 06:47 AM
MikeC's Avatar
Engineer

Join Date: Dec 2008
Location: Brisbane, Australia
Posts: 2,568
Thanks Crazy and Jim.

Good trees you made, Crazy. Nice job. The plaster looks like it works well. The clay will crack too if you bend it too much.

Mike
__________________
Modelling Boston & Maine, Delaware & Hudson, Maine Central and Guilford in H0
My layout:
http://www.thewhistlepost.com/forums...d-mark-ii.html
Reply With Quote
  #8 (permalink)
Old 06-19-2009, 04:51 PM
LiveSteamer's Avatar
Conductor

Join Date: Jul 2006
Location: Lilly, Pa
Posts: 281
Send a message via AIM to LiveSteamer Send a message via Yahoo to LiveSteamer
Some great trees you have there mike.
__________________
Matthew Miller
Volunteer Firefighter
Station 83
Portage Vol. Fire Co.

NARA Member #104
Chessie System Model Railroad
Northern Division
Hauling Freight & Passengers


Norfolk Southern Cyclopedia
Reply With Quote
